Class Creation

Create Classes

Now that we have explored how to identify the needed data and the behaviors of an object, it's time to create a class to define the variables and methods for the attributes and behaviors.

Class Headers

The head of a class consists of an access specifier, the keyword class, and the name of the class. The name of the class should be descriptive and should also be the file name.

An access specifier defines where the class can be used. This is an important part of data encapsulation which is a way of implementing a class to keep its data hidden from external classes.

For class headers, you will likely want to use public so that other classes you write can create objects of your class. The public access specifier means that other classes can access the class, data in the class, or methods of the class.

General Format

public class ClassName

Dice Class Example

public class Dice

After the class header, you will need to have an open brace { and at the end of the file, you will need a close brace }.

Class and Instance Variables

Each attribute that was identified will need to be defined using a variable. To keep the data of an object safe, we will make the data private instead of public. This means that the data will not be accessible outside of the class unless there is a method to access the values.

A class variable is an attribute that is shared by all instances of the class. These are declared static.

Since, the value is for all instances of the class, the value of the variable is typically set when it is defined.

General Format

private static dataType variableName = value;

Dice Class Format

private static int diceIdCounter = 1;

An instance variable is an attribute that is unique for each instance of the class. Each object of the class has its own copy of the variable.

The value for the variable is typically set in the constructor. The variables are only defined at this point.

General Format

private dataType variableName;

Dice Class Format

private int diceId;

Constructor

Constructors are used to set the initial state, or value of the instance variables, of an object.

A constructor always has the same name as the class.

A class can have many constructors. The default constructor has no parameters and sets default values to the instance variables. Constructors can also contain parameters that can be used to set the initial value, or state, of the instance variables.

When no consturctor is written, Java provides a default constructor where the instance variables are assigned default values based on their types.

• int variables are assigned 0.
• double variables are assigned 0.0.
• boolean variables are assigned false.
• char variables are assigned a null character.
• reference types are assigned null.

We will use public for the constructors so that other classes can create objects of the class.

General Format

//default constructor
public ClassName() {
    //values are assigned to instance variables
}

//non-default constructor
public ClassName(dataType param, ...) {
    //values are assigned to instance variables
}

Dice Class Constructor Format

//default constructor
public Dice() {
    diceId = diceIdCounter;
    diceIdCounter++;
    numSides = 6;
}

//non-default constructor
public Dice(int sides) {
    diceId = diceIdCounter;
    diceIdCounter++;
    numSides = sides;
}

Methods

The behaviors that have been defined are implemented by writing methods for the class.

Some methods are internal to the class and external classes should not be able to call them. In these cases, the methods might be private.

Some methods we will want external classes to call them. In these cases, the methods might be public.

Methods have a return type.

• If the method is performing an action, but not producing a value, the return type is void.
• If the method is producing a value, the return type will be the type of this value.
• Methods only have one return type. So if you want to return more than one value, you could create a new type in the form of a record.

Accessor Methods

This type of method allows the object to obtain a copy of the value of class or instance variables. These methods will have a return type that is the type of the variable it is returning.

General Format

public dataType methodName() {
    return variable;
}

Dice Class Example

public int getDiceId() {
    return diceId;
}

public int getNumSides() {
    return numSides;
}

Mutator Methods

This type of method allows the object to modify the public instance variables. These methods will have a return type of void and will take a parameter tha is the new value.

General Format

public void methodName(dataType parameter) {
    instanceVar = parameter;
}

Dice Class Example

public void setNumSides(int sides) {
    numSides = sides;
}

Foldi

Use these images to create a helpful guide for creating a class.

• Print these two images back to back.
• Fold in half along the vertical line.
• Cut along the horizontal lines between the terms and definitions of the terms.

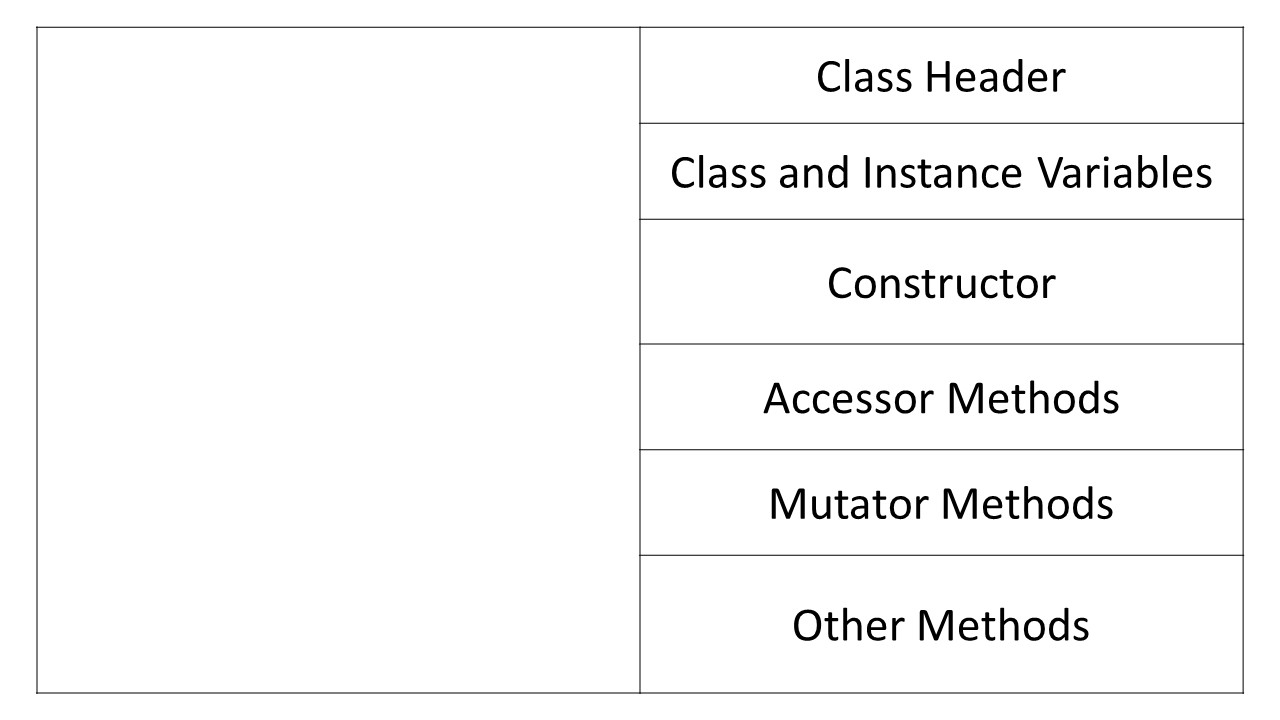

Outside of the Foldi

Inside of the Foldi

Dice Class Code

Either use the Java Playground or an IDE to demonstrate this code to simulate rolling a die.

Use the Java Playground

• Predict the output from running the body of main for testing.
• Run the code to determine if your prediction was correct.
• To the main:
  • add statements to call the accessor method and print the number of sides.
  • add a statement to change the number of sides to 10.
  • add statements to roll the dice and print the value.
  • add a statement to use the toString method.
• Run the code to test the additions you have mad to main

Use an IDE

If you are using an IDE, create two .java files:

• Dice.java
• DiceTester.java

Copy code into the associated .java file.

public class Dice {
    //class variable
    private static int diceIdCount = 1;
    //instance variables
    public int diceId;
    public int numSides;

    //Constructors
    //Default Constructor
    public Dice() {
        numSides = 6;
        diceId = diceIdCount;
        diceIdCount++;
    }
    public Dice(int sides) {
        numSides = sides;
        diceId = diceIdCount;
        diceIdCount++;
    }

    //Accessor Method
    public int getNumSides() {
        return numSides;
    }

    //Mutator Method
    public void setNumSides(int sides){
        numSides = sides;
    }

    //Other Methods
    public int roll() {
        return (int)(Math.random() * numSides) + 1;
    }

    public String toString() {
        return "A dice with " + numSides + " sides.";
    }
}

void main() {
    Dice sixSides = new Dice();
    int value = sixSides.roll();
    println(value);

    //add statements to call the accessor method and print the number of sides
    //add a statement to change the number of sides to 10
    //add statements to roll the dice and print the value
    //add a statement to use the toString method
}

Your Turn

	Grab a Piece of Paper, Let's Try It!
	In the prior tutorial, you were asked to find an object to model and create a diagram of the class. This could be an object from a game or something physical in your environment. If you can't think of something, consider a spinner or playing card. Implement this class. Create test class to test your class. Create an object of the class and call the methods on this object.
